CE certification efficient spring cone crusher for Secondary Crushing

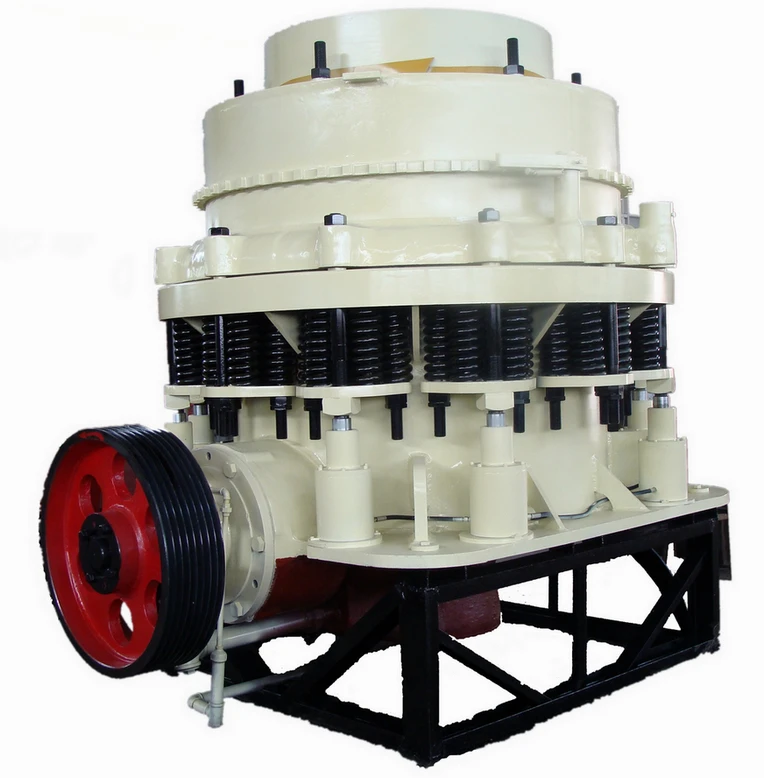

spring cone crusher
Type: Secondary Crushing
Input Size: 83-369MM
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz,diabase,etc. (for hard stone)
Applications:
Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work. Because of this, CS Series cone crushers enjoy a worldwide reputation as rugged, durable, easy to maintain, and reliable. Now there is a conversion kit to combine all the features that made them so rugged and reliable, with more modern features to increase production and automation.
Technical Data
| Type | Model | Cavity Type | Diameter of cone (mm) | Adjusting Range of Discharge
Opening (mm) | Recommend feeding size when the minimum output size (mm) | Max feed
size (mm) | Capacity (t/h) | Main
Motor
Power (kw) | Weight (kg) | Overall
Dimension
(L×W×H) (mm) |
| 2’FT | PSGB- 0607 | Standard fine | 600 | 6-38 | 70 | 60 | 16-50 | 22 | 4500 | 2195×1158×1651 |
| PSGB- 0609 | Standard medium | 10-38 | 95 | 80 | 18-65 |
| PSGB- 0611 | Standard coarse | 13-38 | 110 | 90 | 22-70 |
| PSGD- 0603 | Short head fine | 3-13 | 35 | 30 | 9-35 |
| PSGD- 0605 | Short head coarse | 5-16 | 50 | 40 | 22-70 |
| 3’FT | PSGB- 0910 | Standard fine | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB- 0917 | Standard coarse | 13-38 | 175 | 150 | 59-163 |
| PSGB- 0918 | Standard super coarse | 25-38 | 178 | 150 | 118-163 |
| PSGD-0904 | Short head fine | 3-13 | 41 | 35 | 27-90 | 10530 |
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 |
| PSGD-0907 | Short head coarse | 6-19 | 102 | 85 | 59-129 |
| 4.25’FT | PSGB- 1313 | Standard fine | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB- 1321 | Standard medium | 16-38 | 210 | 178 | 132-253 |
| PSGB- 1324 | Standard coarse | 19-51 | 241 | 205 | 172-349 |
| PSGB- 1325 | Standard super coarse | 25-51 | 259 | 220 | 236-358 |
| PSGD-1306 | Short head fine | 3-16 | 64 | 54 | 36-163 | 22590 |
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 |
| PSGD-1310 | Short head coarse | 8-25 | 105 | 89 | 109-227 |
| PSGD-1313 | Short head super coarse | 16-25 | 133 | 113 | 209-236 |
| 5.5’FT | PSGB- 1620 | Standard fine | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB- 1624 | Standard medium | 22-51 | 241 | 205 | 258-417 |
| PSGB- 1626 | Standard coarse | 25-64 | 269 | 228 | 299-635 |
| PSGB- 1636 | Standard super coarse | 38-64 | 368 | 313 | 431-630 |
| PSGD-1607 | Short head fine | 5-13 | 70 | 60 | 90-209 | 43870 |
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 |
| PSGD-1613 | short head coarse | 10-25 | 133 | 113 | 190-336 |
| PSGD-1614 | Short head super coarse | 13-25 | 133 | 113 | 253-336 |
| 7’FT | PSGB- 2127 | Standard fine | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4613×3302×4638 |
| PSGB- 2133 | Standard medium | 25-51 | 334 | 284 | 862-1424 |
| PSGB- 2136 | Standard coarse | 31-64 | 369 | 314 | 1125-1814 |
| PSGB- 2146 | Standard super coarse | 38-64 | 460 | 391 | 1252-1941 |
| PSGD-2110 | Short head fine | 5-16 | 105 | 89 | 218-463 | 89500 |
| PSGD-2113 | Short head medium | 10-19 | 133 | 113 | 404-580 |
| PSGD-2117 | Short head coarse | 13-25 | 178 | 151 | 517-680 |
| PSGD-2120 | Short head super coarse | 16-25 | 203 | 172 | 580-744 |
