500 tph output mobile crusher jaw crusher impact crusher crushing plant

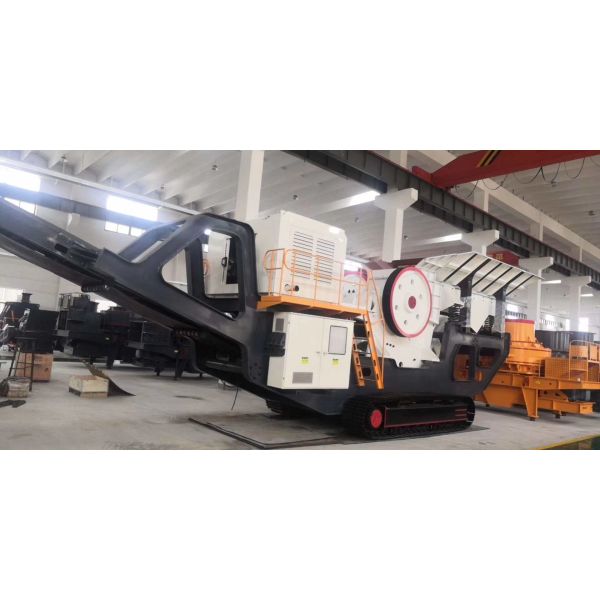

Introduction of Mobile crusher
Mobile crusher is a new type of equipment developed on the basis of years of independent research and development and manufacturing experience of wheel mobile crushing plant, and in combination with the new user demands. It is optimized and innovated in the aspects of structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widen the application fields of wheel mobile crushing plant, and truly realize the approaching treatment of materials.
Mobile crusher component
1. The product use of world-class manufacturing processes, selection of the high-end materials.
2. The base of bearing use of integrated steel structures.
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal line width.
4. The broken cavity is deep and without dead zone, increased capacity and output feed.
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance.
6. The outlet use of pad-style adjustment devices, convenient and reliable, large of adjustment range, and increase the flexibility of the equipment.
7. Low noise, less dust.
Application of Mobile crusher
We provides a complete line of stone production; the output is widely used in Construction (like concrete, highway, railway, brick, building, etc), For Mining ( like gold, copper, Iron ore beneficiation or nonmetal beneficiation, etc)
Mobile crusher parameters
Mobile jaw crusher:
| Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration↵ ) | Engine (Optional) | Overall dimension (mm) |
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power(kw) |
| YF938J69-N | Two-Spindle | GZD960×3800 | 500 | 6-11 | PE600×900 | 500 | 6-75 | B800×8.5 | 200 | 12600×2550×3870 |
| YF1142J710-N | Three-Spindle | GZD1100×4200 | 580 | 6-11 | PE750×1060 | 630 | 8-90 | B1000×9.5 | 250 | 13900×2750×4320 |
| YF1349J912-N | Three-Spindle | GZD1100×4900 | 750 | 6-22 | PE900×1200 | 750 | 8-130 | B1200×10.5 | 270 | 15450×2950×4380 |
| YF1349J811-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW860 | 720 | 6-132 | B1200×10.5 | 320 | 15450×2950×4380 |
| YF1349J1120-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW1100 | 930 | 8-185 | B1200×10.5 | 400 | 15450×2950×4380 |
Mobile (Portable) Jaw Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Mobile impact crusher plant:
| Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration) | Engine (Optional) | Overall dimension (mm) |
| Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power (kw) |
| YF938FW1214Ⅱ | Two-Spindle | GZD960×3800 | 500 | 6-11 | PFW1214II | 500 | 4-132 | B800×8.5 | 360 | 12600×2550×3870 |
| YF1142FW315Ⅱ | Three-Spindle | GZD1100×4200 | 580 | 6-15 | PFW1315II | 600 | 4-160 | B1000×9.5 | 400 | 13900×2750×4180 |
| YF1349FW318Ⅱ | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PFW1318II | 700 | 4-200 | B1200×10.5 | 500 | 15450×2950×4180 |
| Y3S1860F1214-N | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PF1214 | 350 | 6-132 | B800×8.5 | 360 | 14300×2830×4380 |
| Y3S2160F1315-N | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PF1315 | 350 | 6-200 | B1000×8.5 | 500 | 14300×3190×4380 |
| Y3S1860FW214Ⅲ | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PFW1214Ⅲ | 250 | 4-132 | B800×8.5 | 360 | 14300×2830×4380 |
| Y3S2160FW315Ⅲ | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PFW1315Ⅲ | 300 | 4-160 | B1000×8.5 | 400 | 14300×3190×4380 |
Mobile (Portable) Impact Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the clifent.
