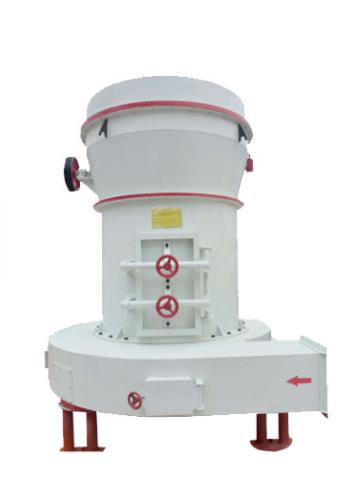

High Quality Superfine Grinding Equipment Raymond Mill Of Ore Grinding Mill
1. Raymond mill main structure Of Ore Grinding Mill
The machine structure is mainly composed of main machine, analyzer, fan, finished cyclone separator, micro powder cyclone separator and air duct. Among them, the host machine consists of a frame, air inlet volute, shovel, grinding roller, grinding ring, cover shell.
2. Product parameters of Raymond mill Of Ore Grinding Mill
| Model number and technical parameters of Raymond mill |
| Model | 6R4525 | 5R4119 | 4R3216 | 3R75 | 3R65 | 3R60 |
| Spec |
| Feed size(mm) | ≤30 | ≤25 | ≤25 | ≤20 | ≤15 | ≤15 |
| Finished size(mm) | 0.125-
0.044 | 0.125-
0.044 | 0.125-
0.044 | 0.125-
0.044 | 0.125-
0.044 | 0.125-
0.044 |
| Different material fineness shift production(t) | 16-120 | 8-60 | 4-45 | 1.5-20 | 1-18 | 0.5-8 |
| Center shaft speed (r/min) | 82 | 105 | 130 | 160 | 180 | 280 |
| Grinding ring diameter(mm) | 1770 | 1400 | 1073 | 865 | 725 | 495 |
| Grinding roller diameter(mm) | 450 | 410 | 320 | 260 | 210 | 140 |
| Grinding roller height(mm) | 250 | 190 | 160 | 150 | 150 | 100 |
| Main motor | y315m-
4-132 | y280s-
4-75 | y225s-
4-37 | y225s-
8-18.5 | y200L-
8-15 | y160m-
6-7.5 |
| Blower motor | y315m-
4-132 | y250m-
4-75 | y200L-
4-37 | y160L-
4-15 | y160m-
4-11 | y132s-
2-5.5 |
| Analyzer motor | y160m-
4-11 | yc200-
4B-7.5 | yc120-
4a-5.5 | y112m-
6-202 | y112m-
6-2.2 | y90L-
6-1.1 |
High Quality Superfine Grinding Equipment Raymond Mill Of Ore Grinding Mill
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
