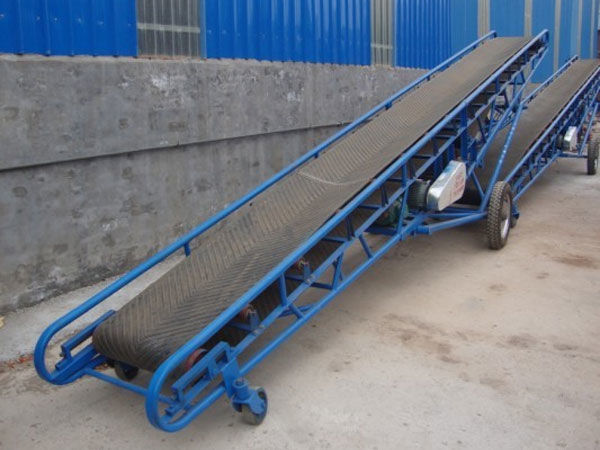

Conveying Hoisting Machine Belt Conveyor Can Be Used In -20℃~ +40℃ Temperature
1. Product introduction of belt conveyor conveying hoisting machine
The belt conveyor manufactured by Luoyang Mining Machinery Factory can transport various materials economically and effectively. It has the characteristics of large throughput, long conveying distance, smooth conveying, low noise, simple structure, convenient maintenance, less energy consumption, standardized components and so on. Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines and hydropower station construction sites and other production departments.
Line conveying can be selected according to the process requirements: ordinary continuous operation, beat operation, variable speed operation and other control modes; Line body selection according to local conditions: straight line, curve, slope and other line body form of transportation equipment including: belt conveyor, also called belt conveyor or belt conveyor, is the composition of rhythmic flow line of indispensable economic logistics transportation equipment. According to its conveying capacity, the belt machine can be divided into heavy belt machine such as mining belt conveyor, light belt machine such as used in electronic plastics, food, light industry, chemical and pharmaceutical industries.
Belt conveyor is also called belt conveyor. The conveyor belt moves according to the principle of friction transmission. It is suitable for conveying powdery, granular, small block low grinding cut materials and bag materials, such as coal, gravel, sand, cement, fertilizer, food and so on. The belt conveyor can be used in the ambient temperature range of -20℃ to +40℃, and the temperature of the material to be delivered is less than 60℃. Its length and the form of assembly can be determined according to the user's requirements, the transmission can be electric drum, also can be used with a drive frame drive device.
2. Product parameters of conveying hoisting machine
Main technical parameters of belt conveyor:
| Belt width (mm) | Belt length/power | Conveying speed(r/s) | Processing capacity(t/h) |
| Ⅰ(L/kW) | Ⅱ(L/kW) | Ⅲ(L/kW) |
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 660-1200 |
Conveying Hoisting Machine Belt Conveyor Can Be Used In -20℃~ +40℃ Temperature
Conveying Hoisting Machine Belt Conveyor Can Be Used In -20℃~ +40℃ Temperature
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
