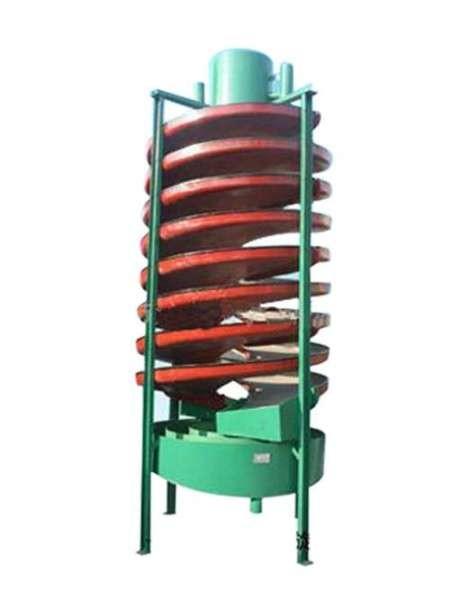

Spiral Chute Separator Of Ore Dressing Equipment Suitable For Mining
1. Ore Dressing Equipment Spiral chute scope of application:
Suitable for sorting iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zirconite and other metal and non-metal minerals with sufficient specific gravity.
Spiral Chute Separator Of Ore Dressing Equipment Suitable For Mining
2. Working characteristics of spiral chute Ore Dressing Equipment :
The working characteristic of spiral chute is that the fine, middle and tailings are intercepted respectively at the end of the trough, and no washing water is added in the sorting process. The spiral groove is the main part of the equipment, which is made of glass steel spiral plates connected by bolts. The inner surface of the spiral groove is coated with a wear-resistant lining, usually polyurethane wear-resistant adhesive or epoxy resin mixed with artificial emery. A wear-resistant layer containing diabase powder was applied to the inner surface of the spiral groove. Above the spiral groove is a ore separator and a ore feed groove; The lower part has a product interceptor and a chute. The whole equipment is set up vertically with channel steel.
3. Spiral chute product parameters of Ore Dressing Equipment
| Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
| Outer diameter (mm) | 1200 | 900 | 600 | 400 |
| Pitch (mm) | 900 ,720 , 540 | 675 , 540 , 405 | 450 , 360 , 270 | 240 , 180 |
| Pitch to diameter ratio (pitch/diameter) | 0,75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.6 , 0.45 |
| Transverse Angle (degree) | 9° | 9° | 9° | 9° |
| Each most Number of mounting screws | 4 | 4 | 3 | 2 |
| Feeding size (mm) | 0.3-.0.03 | 0.3-.0.03 | 0.2-0.02 | 0.2-0.02 |
| Ore feeding concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 |
| Production capacity (ton/hour) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 |
| Dimensions | L(mm) | 1360 | 1060 | 700 | 460 |
| W(mm) | 1360 | 1060 | 700 | 460 |
| H(mm) | 5230 | 4000 | 2600 | 1500 |
| Weight(kg) | 600 | 400 | 150 | 50 |

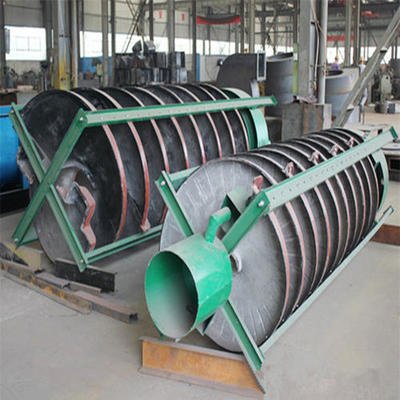

Spiral Chute Separator Of Ore Dressing Equipment Suitable For Mining
Spiral Chute Separator Of Ore Dressing Equipment Suitable For Mining
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
