Feeding size less than 25mm Cement Ball Mill Ore Grinding Mill
1. Product introduction of Cement Mill Cement Ball Mill Ore Grinding Mill
Cement mill - cement ball mill is completed in 2003 domestic ten thousand tons of cement production line host equipment, is the material is broken, and then the key equipment for crushing. Ball mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.
2. Product parameters Cement Ball Mill Ore Grinding Mill
Luo mine cement mill | cement ball mill get technical indicator:
| No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note |
| Power (kw) | Voltage (V) | L | W | H |
| 1 | Φ2.2×6.5 | 13-14 | 22 | ＜25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
| 2 | Φ2.2×11 | 15-16 | 21 | ＜25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
| 3 | Φ2.2×13 | 16-18 | 21.5 | ＜25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | |
| 4 | Φ2.4×8 | 15 | 20.8 | ＜25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
| 5 | Φ2.4×13 | 20-23 | 19 | ＜25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
| 6 | Φ2.6×13 | 30-32 | 19.6 | ＜25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
| 7 | Φ3×9 | 28-32 | 17.8 | ＜25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
| 8 | Φ3×11 | 36-40 | 18.9 | ＜25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | |
| 9 | Φ3×11 | 36 | 17.69 | ＜25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
| 10 | Φ3.2×11 | 40-45 | 17.4 | ＜15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
| 11 | Φ3.5×9.5 | 40 | 18 | ＜20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | |
| 12 | Φ3.5×11 | 45 | 17.2 | ＜15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | |
| 13 | Φ3.6×8.5 | 60 | 16.5 | ＜20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output |
| 14 | Φ3.8×9 | 70-80 | 16.5 | ＜20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | |
| 15 | Φ3.8×12.5 | 55 | 16.4 | ＜25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
| 16 | Φ3.8×13 | 60 | 16.3 | ＜25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Product Tags:
|
|

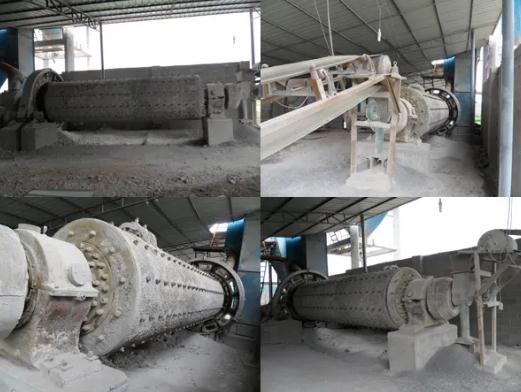

Feeding size less than 25mm Cement Ball Mill Ore Grinding Mill Images
|
